JP – The Temple Plaza and Terrace Edge (Version 1a)

JP^stair3

Processed on 2026-07-01

1. OVERVIEW

Roster Date Author Record
Includes other label 2026-03-04 pC J5f205
J5f257
J5f266 [Input: ZK304pC.j]
Best definition 2026-03-04 !! stair [Input: ZK304pC.j]
Summary 2026-03-04 pC secondary staircase located at the western curve of the revetment wall [Input: ZK304pC.j]
Best image 2026-03-04 pC [Input: ZK304pC.j]

2. IDENTIFICATION

Designation

Roster Date Author Record
Definition 2026-03-04 pC stair [Input: ZK304pC.j]

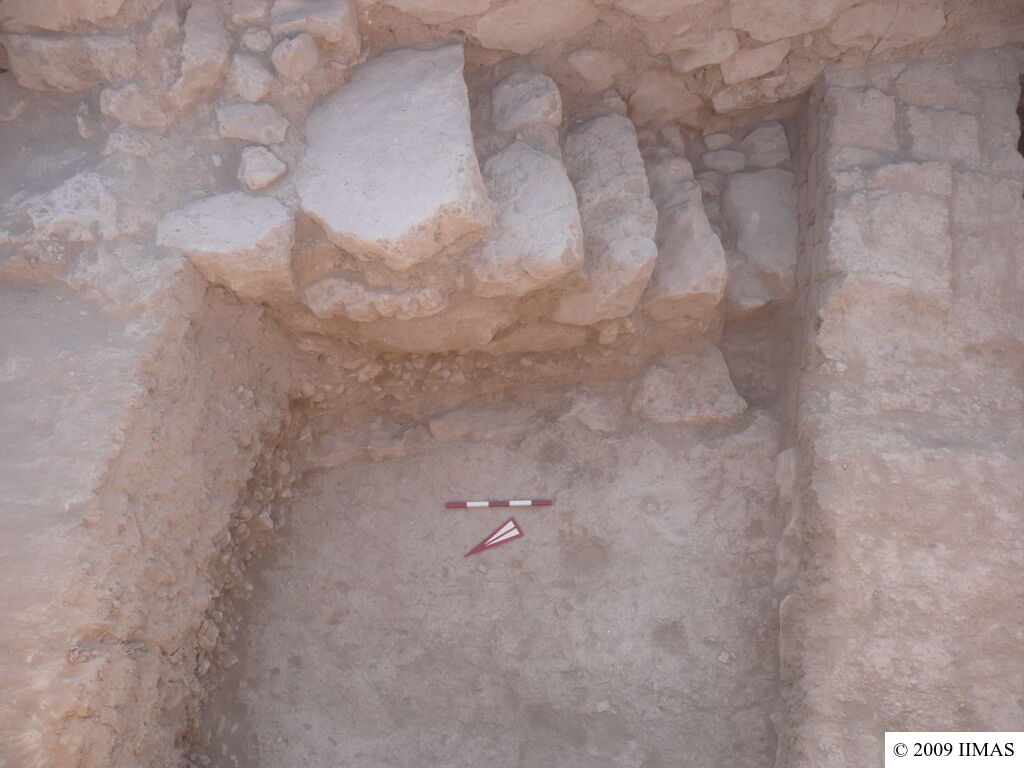

Description (summary) 2026-03-04 pC The staircase consists of five steps, a small wall (^wall12) along its western side, and a landing platform, with an overall length of 5.66 m and a width of 1.08 m. The staircase was constructed on top of a thick accumulation that covers ^escarpment2, indicating that it postdates the escarpment. It is built against Wall ^wall13, and its base lies approximately 0.40 m higher than the base of ^wall13, suggesting that the staircase was also constructed later than the wall. The staircase is aligned along a north–south axis, running parallel to ^wall13. It leads from an open area to the south to a stone-built landing platform to the north. The steps are approximately 1 m wide. Each step is formed by a single large, undressed stone block with a roughly flattened upper surface. The risers range from 0.25 to 0.30 m in height, while the treads measure between 0.30 and 0.65 m in width. The staircase therefore has a slope of approximately 50° and rises through a total height of about 1.20 m, making it relatively steep and difficult to ascend. The first step is built directly on top of the accumulation and consists of two large stone blocks. The southern block is laid perpendicular to the northern one, creating an L-shaped step. Small stones were inserted to fill the gaps between the irregular undressed blocks. A substantial stone substructure is visible along the western side of the staircase. Four large stone blocks, together with numerous medium-sized and smaller stones set in mud mortar, were used to create the desired inclination. The landing platform at the northern end of the staircase lies at the same elevation as the fifth step. Its edge is aligned with the staircase and is formed by five medium-sized stones. The landing is partially covered by stones associated with ^bin1. Alternatively, these stones may represent the remains of additional, poorly preserved steps. If this interpretation is correct, the staircase would have turned 90° to the east and continued upward across Wall ^wall13. [Input: ZK304pC.j]

3. STRATIGRAPHY

Volumetric Localization

Roster Date Author Record
Elevation 2026-03-04 pC 8825 bottom [Input: ZK304pC.j]
2026-03-04 pC 8974 top [Input: ZK304pC.j]
Notes on volumetric localization 2026-03-04 pC elevations and measurements are taken from measured drawings [Input: ZK304pC.j]

Axial Definition

Roster Date Author Record
Orientation 2026-03-04 pC nort-south [Input: ZK304pC.j]

Contact Association

Roster Date Author Record
Notes on contact association 2026-03-04 pC abuts ^wall13 [Input: ZK304pC.j]

Time Sequencing

Roster Date Author Record
Phase (to which element belongs) 2026-03-04 pC Early Mittani [Input: ZK304pC.j]
Stratigraphic reasons of assignment 2026-03-04 pC laid on top of EDIII layers [Input: ZK304pC.j]

4. TYPOLOGY

Measurements

Roster Date Author Record
Height 2026-03-04 pC 1.20 m [Input: ZK304pC.j]
Length 2026-03-04 pC 5.66 m [Input: ZK304pC.j]
Width 2026-03-04 pC 1 m [Input: ZK304pC.j]

Morphology

Roster Date Author Record
Ware or Material, species 2026-03-04 pC lime stone [Input: ZK304pC.j]
Condition 2026-03-04 pC well preserved [Input: ZK304pC.j]

Function

Roster Date Author Record
Generic function (1st degree of specificity) 2026-03-04 pC rises through 5 narrow and steep steps from the plaza (from level of about 88.40 to the level of about 89.70 m) to a higher level, probably where a street is located [Input: ZK304pC.j]

5. TREATMENT

Conservation

Roster Date Author Record
Procedures employed 2026-03-04 pC (conservation procedures employed) [Input: ZK304pC.j]

Site Presentation

Roster Date Author Record
Notes on conservation or analysis 2026-03-04 pC (notes on reference) [Input: ZK304pC.j]

6. REFERENCE

Files and Publications

Roster Date Author Record
Project publications 2026-03-04 pC (project publications) [Input: ZK304pC.j]

7. INTEGRATIVE

Comparative

Roster Date Author Record
Sites 2026-03-04 pC (comparative sites) [Input: ZK304pC.j]
Typologies 2026-03-04 pC (comparative typologies) [Input: ZK304pC.j]
